Straddle loaders, also known as straddle carriers, are versatile material handling machines widely used in ports, warehouses, and industrial facilities. They excel in efficiently moving and stacking heavy loads, making them indispensable in various industries. Straddle loaders come in several types, each tailored to specific applications and operational requirements. In this comprehensive guide, we’ll explore the various types of straddle loaders, their key features, and the industries they serve.
Standard Straddle Loaders
Standard straddle loaders are the most common type, characterized by their straightforward design and versatility. They feature a pair of legs, or straddles, that can be adjusted to accommodate different load sizes. Equipped with a lifting mechanism, this type of gantry crane can hoist heavy loads and move them horizontally. These loaders are commonly used in warehouses, distribution centers, and manufacturing facilities for tasks like stacking pallets, loading and unloading trucks, and organizing inventory.
Key Features:
Adjustable straddles for versatile load handling.
Lifting mechanism for vertical movement.
Maneuverable in confined spaces.
Container Straddle Carriers
Container straddle carriers are specially designed to handle standard shipping containers. They are commonly used in ports and container terminals for efficiently loading, unloading, and stacking containers on ships and in storage yards. These container straddle carriers feature a spreader, or lifting frame, that securely grips the corners of containers, allowing for safe and stable transportation.
Key Features:
Spreader mechanism for secure container handling.
High stacking capabilities for efficient use of storage space.
Robust construction to withstand heavy container loads.

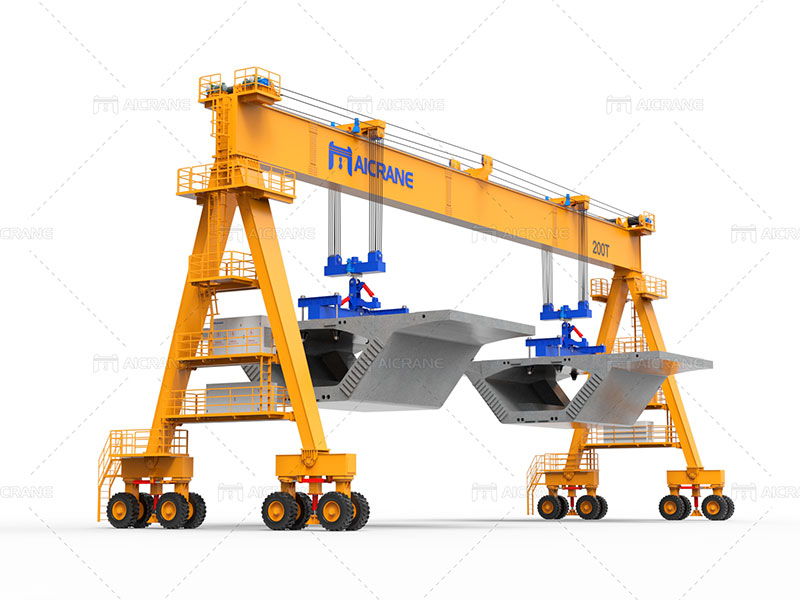

Rubber Tyred Gantry (RTG) Cranes
RTG cranes are a type of straddle carrier commonly used in container yards and intermodal terminals. They are equipped with wheels that allow them to move along rails or on rubber tires. RTG cranes are known for their high stacking capabilities and efficient container handling. They are typically electrically powered, contributing to reduced emissions and operational costs.
Key Features:
Wheeled mobility for flexible movement.
High stacking height for optimized container storage.
Advanced control systems for precise handling.
Automated Straddle Carriers
Automated straddle carriers are equipped with advanced technology, including sensors, cameras, and automated control systems. These loaders can operate autonomously, without the need for direct human intervention. They are commonly used in modern, high-tech warehouses and distribution centers where automation is crucial for optimizing efficiency and throughput.
Key Features:
Advanced automation technology for autonomous operation.
Integration with warehouse management systems (WMS) for seamless operations.
Enhanced safety features, including obstacle detection and collision avoidance.
Heavy-Duty Straddle Carriers
Heavy-duty straddle carriers are designed to handle exceptionally heavy loads, often exceeding 100 tons. They find applications in industries such as steel mills, shipyards, and heavy manufacturing facilities. These loaders are equipped with powerful engines and robust structures to ensure they can handle the immense weight of the loads they transport.
Key Features:
High load capacity for handling extremely heavy materials.
Durable construction to withstand heavy-duty operations.
Customizable configurations to suit specific industry requirements.
Rail-Mounted Straddle Carriers
Rail-mounted straddle carriers are designed to operate on fixed rail tracks, making them well-suited for applications in rail yards and intermodal terminals. They can efficiently handle containerized cargo and other heavy loads, ensuring seamless integration with rail transportation systems.
Key Features:
Mounted on rails for precise and controlled movement.
Efficient handling of containers and other heavy loads in rail yards.
Ability to interface with rail systems for seamless cargo transfer.
Straddle loaders play a crucial role in modern material handling operations across a diverse range of industries. Understanding the different types of straddle loaders and their specific applications empowers businesses to choose the right equipment for their operational needs. Whether it’s efficiently stacking containers at a bustling port or organizing inventory in a warehouse, the versatility and capabilities of straddle loaders make them an invaluable asset in the world of material handling.
