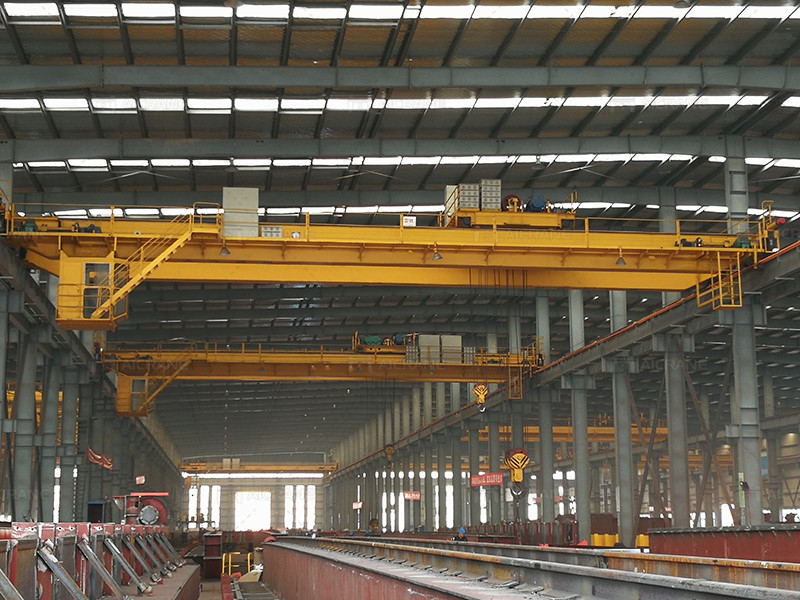

Installing a 40 ton overhead crane requires careful planning, precise execution, and adherence to safety standards to ensure optimal performance and safety in industrial environments. Here are the steps and guidelines for installing a 40 ton overhead crane:
Site Preparation
Evaluate the site where the crane will be installed, ensuring it has sufficient space, overhead clearance, and a suitable foundation.
Clear the area of any obstructions, debris, or obstacles that may interfere with crane operation.
Ensure that the floor is level, strong enough to support the crane’s weight, and capable of withstanding the load requirements.
Foundation Construction
Construct a sturdy foundation or support structure for the crane, following the specifications provided by the crane manufacturer or structural engineer.
Depending on the type of crane and site conditions, the foundation may include concrete footings, anchor bolts, steel beams, or reinforced concrete pads.
Assembly of Crane Components
Assemble the main components of the crane, including the bridge, end trucks, hoist trolley, runway beams, and electrical systems, according to the manufacturer’s instructions and engineering drawings.
Ensure that all components are securely connected, aligned properly, and free from defects or damage before installation.
Mounting the Runway Beams
Install the runway beams or rails on the support structure, ensuring they are level, parallel, and securely anchored to the foundation.
Use proper fasteners, bolts, and welding techniques to secure the beams in place and prevent any movement or shifting during overhead crane operation.
Installation of Bridge and Trolley
Position the bridge and end trucks on the runway beams, ensuring they are centered and aligned with the runway rails.
Use suitable lifting equipment, such as a crane or hoist, to lift and place the bridge onto the runway beams, taking care to prevent any damage to the components.
Hoist Trolley Installation
Install the hoist trolley onto the bridge, ensuring it is securely mounted, aligned with the runway, and capable of traversing the entire length of the 40 ton overhead crane.
Connect the hoist motor, cables, and controls according to the manufacturer’s specifications, ensuring proper tension and functionality.
Electrical Wiring and Controls
Install the electrical wiring, power supply, and control panels for the crane, following electrical codes and safety standards.
Test the electrical systems, controls, and safety features, such as limit switches, overload protection, and emergency stop buttons, to ensure they are functioning correctly.
Load Testing and Calibration
Conduct load testing of the crane to verify its capacity, stability, and performance under various load conditions.
Calibrate the hoist, trolley, and bridge controls of the heavy duty overhead crane to ensure smooth operation, precise positioning, and safety during lifting and movement tasks.
Safety Inspections and Certification
Perform thorough safety inspections of the entire crane system, including mechanical components, electrical systems, and structural integrity.
Obtain certification and approval from regulatory authorities or certified inspectors to ensure compliance with safety standards and regulations.
Training and Commissioning
Provide comprehensive training for crane operators, maintenance personnel, and other relevant staff on safe operating procedures, maintenance practices, and emergency protocols.
Commission the crane system for regular operations, monitor its performance, and address any issues or adjustments as needed to ensure optimal functionality and safety.
In conclusion, the installation of a 40 ton overhead crane requires careful planning, skilled labor, and adherence to safety protocols to ensure successful and safe operation in industrial settings. Following these steps and guidelines can help ensure a smooth and efficient installation process, leading to reliable crane performance and enhanced workplace productivity.
