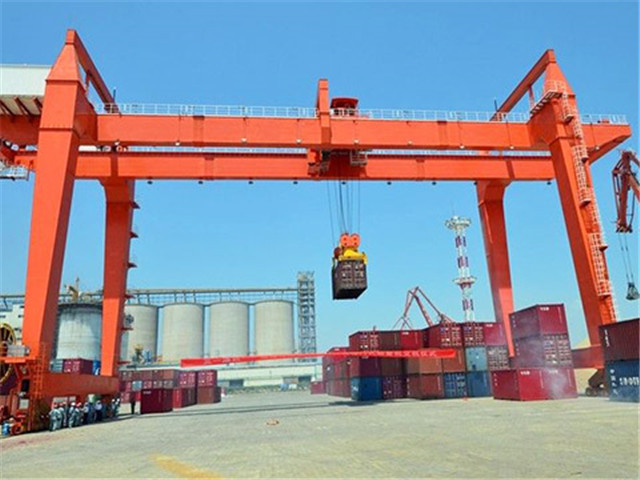

Shipping container gantry cranes are towering structures found in port terminals worldwide, responsible for the smooth and efficient movement of shipping containers. These massive machines play a vital role in handling containers during loading, unloading, and storage operations. In this passage, we will explore the operation of shipping container gantry cranes, examining their components, working principles, and the benefits they bring to port logistics.
Components of a Shipping Container Gantry Crane
Main Structure
The main structure of a shipping container gantry crane consists of a large steel framework, typically supported by multiple legs or columns. This structure provides stability and strength necessary to withstand heavy loads and adverse weather conditions.
Boom
At the top of the gantry crane’s framework is the boom, a horizontal beam that extends outward. The boom is equipped with a trolley system, which moves along the length of the beam, allowing it to reach different positions within the crane’s operating area.
Spreader Beam
Attached to the trolley system is a spreader beam, which is used to lift and lower shipping containers. The spreader beam can be adjusted to accommodate containers of various sizes, ensuring a secure grip during lifting and moving operations.
Hoist Mechanism
The hoist mechanism is responsible for raising and lowering the spreader beam. It consists of an electric motor, drum, and wire ropes or chains. The hoist mechanism enables precise control over the vertical movement of containers, ensuring safe and efficient handling.
Control System
Modern shipping container gantry cranes are equipped with advanced control systems that allow operators to monitor and control the crane’s movements. These systems feature joysticks, switches, and computer interfaces that enable precise positioning and coordination of the various crane functions.
Working Principles of a Shipping Container Gantry Crane
Container Loading and Unloading
When a container ship arrives at the port, shipping container gantry cranes swing into action. The crane operator positions the spreader beam above the target container, ensuring proper alignment. The hoist mechanism is engaged, lifting the container off the ship’s deck or from the terminal ground. The spreader beam then moves horizontally, carrying the container to its designated location, such as a truck, railcar, or storage area.
Container Stacking and Retrieval
Shipping container gantry cranes are also responsible for stacking containers in storage yards. After unloading a container from a truck or train, the gantry crane’s spreader beam lifts it to the desired height and position within the container stack. Similarly, when a container needs to be retrieved for loading onto a truck or ship, the gantry crane locates and lifts it from the designated storage area.
Benefits of Shipping Container Gantry Cranes
Increased Efficiency
Shipping container gantry cranes significantly improve the efficiency of port operations. They can handle multiple containers simultaneously and quickly position them with precision. This capability reduces waiting times, increases throughput, and enhances overall productivity in loading, unloading, and storage processes.
Versatility
Gantry cranes are designed to handle containers of various sizes and weights. By adjusting the spreader beam, they can accommodate standard 20-foot, 40-foot, and even larger containers. This versatility allows for seamless handling of different container types, ensuring compatibility with diverse cargo requirements.
Safety
The strict safety standards applied to shipping container gantry cranes minimize accidents and ensure the well-being of workers and cargo. Advanced control systems provide real-time monitoring of load capacities, preventing overloading and instability issues. Additionally, safety features, such as anti-collision systems and emergency stop mechanisms, further enhance the safe operation of these cranes.
Optimized Use of Space

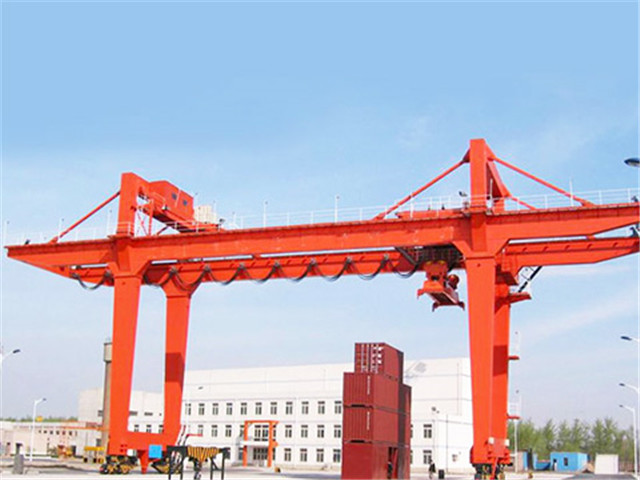

With their vertical lifting capability and ability to stack containers, shipping container gantry cranes optimize the use of available space in port terminals. They allow for efficient utilization of valuable land by stacking containers in a compact manner, maximizing storage capacity. Some of the shipping container gantry cranes have cantilever. This feature allows the cantilever gantry crane to reach over obstacles or into confined spaces.
Adaptability to Various Environments
Shipping container gantry cranes are designed to operate in different environmental conditions, including extreme weather. Most of them are double girder gantry cranes. Their robust construction and reliable performance ensure consistent operation, regardless of external factors such as wind, rain, or temperature.
The operation of shipping container gantry cranes is essential for the efficient handling and movement of containers in port logistics. These powerful machines provide precise positioning, safe lifting, and fast transport of containers, contributing to enhanced productivity and streamlined operations. With their versatility, safety features, and adaptability to various environments, shipping container gantry cranes continue to play a pivotal role in the global supply chain, facilitating the smooth flow of goods and promoting economic growth.
